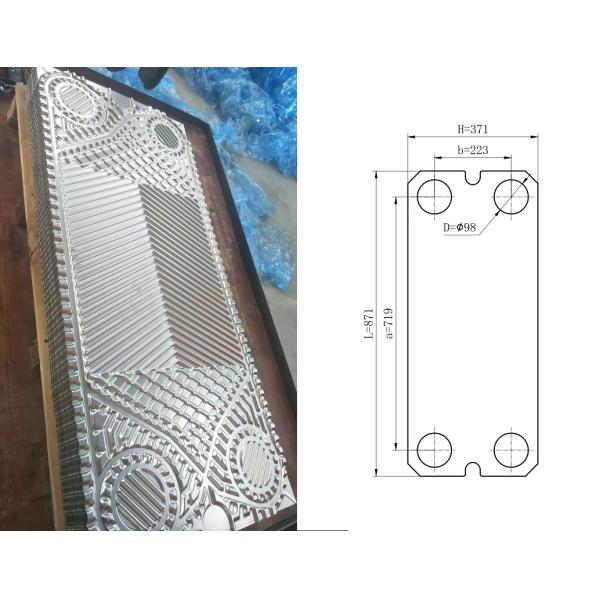

M10MX Titaniumplate,dialognal heat exchanger plate,Channel plate,flow Plate with clip on Gasket NBR for Seawater Heat exchanger
Detailed Product Description
1. Equal to ALFA M10MX plate heat exchanger.
2. Plate gasket: NBR / EPDM
3. Plate material: 316L /304/Ti material
Same as ALFA M10 gasket plate heat exchanger, can replace original M10 plates and gasket.
Material: 316L, 304, Ti, SMO, Hastelloy
Thickness: 0.5mm, 0.6mm
Gasket: NBR, EPDM
Gasket type: clip on
Applications:
District heating, district cooling, marine oil cooling, chemical, food industry
Competitive Advantages Well and High Quality Control
Well and High Quality Control
| Model | Corrugation Angle | Corrugation Depth (mm) | Angle Hole Diameter (mm) | Angle Hole Center Distance (mm) | Plate Size (mm) | Area of Plate (㎡) |
| M10B | 60°118° | 2.6 | φ97 | 719*223 | 874*373 | 0.24 |
| M10M | 57°121° | 4 | φ98 | 719*223 | 871*371 | 0.24 |
1. Plate material
*stainless steel AISI304(14301)
*stainless steel AIsI316(14401)
*Ti, ti-*Titanium and titaniumpalladium
Special steel *HASTELLoY alloy *254SMO
*20Cr,18Ni,,nickel(Ni) etc
2. Gaster material
*NBR,HT-NBR,HNBR
*EPDM,EPDM-NT,EPDM-HT
*CR
*Viton (FKM):Viton-A, Viton-G,Viton-B
3.Material Choose reference:
| Plate material | Suitable for fluid |
| Stainless(AISI304,AISI316): | Clean water, river water, cooking oil, mineral oil |
| Ti,Ti-Pd: | Sea water, salt water, salt |
| 20Cr,18Ni,6Mo(254SMO): | Dilute sulfuric acid, dilute salinized water solution, inorganic water solution |
| Ni: | High temperature, high viscosity caustic soda |
| HASTELLOY: | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid |
| Sealing material: | adapt temperature | Suitable for fluid |
| NBR | -15~+120℃ | Water, sea water, cooking oil, salt water |
| HNBR | -15~+140℃ | High temperature mineral oil, high temperature water |
| EPDM | -25~+170℃ | Hot water, water vapor, acid, alkali |
| Viton | -5~+130℃ | Acid, alkali, fluid |
